UAHFW1 Vacuum Sealer 2026: Best Wholesale Buyer’s Guide
The UAHFW1 wholesale vacuum sealer is an 8-mode, button-operated automatic vacuum food sealer rated at 90 kPa suction, a 35 cm sealing bar and a global 100-220 V input. It is built for distributors, hospitality buyers and private-label brands sourcing from China at an MOQ of 500 units with a 15-30 day lead time.
The UAHFW1 is built by a vacuum food sealer manufacturer in China — factory-direct, with OEM and wholesale terms from 50 units.
Key Takeaways
- The UAHFW1 automatic vacuum sealer delivers 90 kPa of vacuum strength and a 185 W motor — strong enough for sous-vide cuts, marinated meats, dry pantry goods and bulk pre-portioned packs.
- It runs eight distinct modes from one button cluster: Can, Seal Only, Pulse, Blow, Vacuum Seal, Dry Food, Moist Food, plus a three-step Loose / Standard / Tight vacuum-strength selector for delicate items.
- One global 100-220 V (50-60 Hz) SKU covers the US, EU, UK, AU and most of Asia — you stock a single carton rather than splitting plug variants.
- Built-in bag cutter, roll storage, removable heating wire and removable drip tray reduce post-sale support tickets — users do not have to ship the unit back to replace a worn strip or clean a moist-mode spill.
- Wholesale terms: MOQ 500 units, 15-30 day production, FOB China, EXW and CIF available, 30/70 T/T, Alibaba Trade Assurance, CE and RoHS for export, 12-month manufacturer warranty.
Written by the Vacuum Food Sealers China product team · Reviewed by Mi Lan, founder of Guilin Use at Home Technology Co., LTD · Updated June 2026.
- Quick answer: what is the UAHFW1?
- Key specifications at a glance
- The 8 vacuum modes explained
- How to use the UAHFW1 step by step
- How we manufacture the UAHFW1
- Wholesale, B2B and OEM ordering
- UAHFW1 vs other vacuum sealers in our range
- Buyer FAQ
- Conclusion
Quick answer: what is the UAHFW1?
The UAHFW1 is a counter-top, button-operated automatic vacuum food sealer designed for medium- to heavy-duty wholesale and B2B use. The model number itself is the global SKU we ship under — the same casing, motor and 35 cm sealing bar are then re-branded by importers, hotel groups and private-label kitchen brands across more than two dozen markets.
The headline numbers buyers usually compare are simple: 90 kPa of suction pressure (very close to a true commercial vacuum), a 30 L/min ±15% air flow rate, a 4 mm heat-seal strip and a generous 35 cm sealing width that accommodates wide gallon-size bags. Net product weight is 3.5 kg, packaging is 504 × 177 × 308 mm per unit, and a 40HQ container holds up to 2,120 pieces.
Who the UAHFW1 is built for
This sealer targets distributors and importers whose end-buyers are home meal-preppers stepping up from a basic 60-65 kPa starter unit, plus light commercial users — butcher shops, fishmongers, sous-vide-forward restaurants, coffee roasters portioning beans, and hotel housekeeping teams sealing small amenities. It is intentionally not a chamber sealer: external vacuum sealers like the UAHFW1 are cheaper to manufacture, lighter to ship and easier for an untrained operator to use.
What makes the UAHFW1 different from a generic 90 kPa sealer
Three details: a removable heating wire so a worn-out seal strip is a 30-second swap instead of a warranty ticket; a removable drip tray so the moist-food mode never leaks into the casing; and a built-in bag roll storage compartment with an integrated cutter. Buyers who stocked older units without these touches tell us the post-sale support cost was the single biggest hidden margin leak.
Key specifications at a glance
Below is the full UAHFW1 spec sheet, with a third column explaining why each line item matters when a wholesale buyer evaluates the model against a sea of look-alike 90 kPa units on Alibaba.
| Specification | UAHFW1 | Why it matters |
|---|---|---|
| Vacuum strength | 90 kPa | Pulls roughly 90% of atmospheric pressure from a standard bag, putting the UAHFW1 in the same suction tier as commercial external sealers and well above 60-65 kPa starter machines. |
| Motor power | 185 W | High enough to evacuate a gallon bag in one continuous pass without a duty-cycle pause; low enough that the unit runs on a standard household outlet anywhere. |
| Voltage | 100-220 V, 50-60 Hz | One global SKU for US, EU, UK, AU and most of Asia — no plug-standard fragmentation, simpler inventory for distributors. |
| Motor rated voltage | DC 15 V | Step-down PCB drives the pump at low DC, which keeps the brushed motor lifetime competitive with industrial benchmarks. |
| Sealing strip width | 4 mm | A 4 mm strip gives a wider, more leak-proof seal line than the 2-3 mm bars on entry-level units — essential for moist mode and frozen storage. |
| Sealing width | 35 cm | Accepts wide-mouth gallon roll bags up to 30 cm bag width, so end-users can pack whole briskets, large cuts of fish, family-size meal-prep portions or bulky pantry refills. |
| Air flow rate | 30 L/min ±15% | Strong but not aggressive — pairs cleanly with the Pulse mode to control suction on chips, bread, soft cheeses and other crushable items. |
| Accessories included | Vacuum bag roll, flat vacuum bags, external suction tube, power cord | End-buyer can vacuum a jar, canister or wine stopper out of the box — no upsell pressure and no negative review for "arrived empty". |
| Material | ABS | Food-contact safe ABS keeps unit weight at 3.5 kg net and cost-per-piece competitive vs all-metal commercial units that ship at 6-9 kg. |
| Product dimensions | 450 × 245 × 125 mm | Footprint sized for a residential counter or a hotel housekeeping cart — the bag roll storage fits inside the housing rather than sticking out the back. |
| Net / gross weight | 3.5 kg / 4.1 kg | Friendly to courier networks at retail, and the gross weight keeps single-unit airfreight tier costs in check. |
| Carton qty | 2 units per carton, 9.5 kg gross, 0.0641 CBM | Two-up cartons keep the per-piece freight share predictable; you do not have to break a master case to fulfil small orders. |
| Container loadability | 872 (20 ft) / 1,808 (40 ft) / 2,120 (40HQ) | One 40HQ container ships over 2,000 finished units — helpful for sea-freight buyers locking in 2026 catalogue pricing. |
| Standard MOQ | 500 units | Half the MOQ of most factory-direct external sealers on the market, opening the door to mid-sized distributors and brand-new private-label launches. |
Why the 4 mm heat-seal strip matters
Most sealer warranty claims come back to the same root cause: a thin, under-spec heat strip cannot weld a bag cleanly when there is any moisture on the surface. By stepping up to a 4 mm strip width, the UAHFW1 lays down a wider weld line that survives freeze-thaw cycles and moist-mode runs without micro-tears. Pair this with the removable heating wire and you have a unit whose serviceable life is measured in years, not months.
Power, voltage and global plug compatibility
The PCB accepts a 100-220 V, 50-60 Hz input range, so distributors only need to switch out the moulded power cord between IEC, US, UK, EU and AU markets — the rest of the BOM stays identical. This is the single biggest reason to spec the UAHFW1 over a 110 V-only or 220 V-only competitor: one SKU, one box label, one set of QC records.
Suction strength vs flow rate — what the numbers really mean
Suction (kPa) is the maximum pressure differential the pump can produce; flow rate (L/min) is how quickly air is evacuated. A unit with very high kPa but low flow takes longer to seal a bag and can crush delicate foods; a unit with high flow but low kPa seals quickly but leaves residual air. The UAHFW1 sits in the well-balanced commercial-grade sweet spot — 90 kPa with 30 L/min, controllable via Loose / Standard / Tight settings.
The 8 vacuum modes explained
Eight modes sounds like a marketing inflation number, and on many cheap units it is. On the UAHFW1 each mode maps to a distinct vacuum or seal behaviour — the button cluster is short on labels for a reason, which makes a clear breakdown for end-customers important for after-sales success.
| Mode | What it does | Best use |
|---|---|---|
| Vacuum Seal | Runs a full vacuum draw then triggers the heat-seal weld automatically. | Default mode for pre-portioned meat, cheese, ready-meal bags. |
| Dry Food | Lower heat-bar temperature, no extra dwell time on the seal step. | Rice, pasta, coffee beans, herbs, nuts, dehydrated fruit, pet food. |
| Moist Food | Heat bar runs at a higher temperature to weld through residual moisture. | Marinated meat, fish, soft cheese, leftovers with sauce or oil. |
| Seal Only | Skips vacuum draw, runs the heat strip alone. | Chip bags, snack bags, freezer bags that do not need a vacuum. |
| Pulse | Manual vacuum trigger — user holds the button to pulse air out gently. | Crushable foods such as bread, soft fruit, lettuce, baked goods. |
| Blow | Reverses airflow to inflate sous-vide / mason-jar canisters with positive pressure. | Re-pressurising canisters, blowing residual flour out of seal bar. |
| Can | Drives the external suction tube to vacuum a canister or jar through its lid. | Vacuum canisters, mason jars with valve lids, wine stoppers. |
| Loose / Standard / Tight | Three-step vacuum-strength selector layered on top of the modes above. | Loose for crushables, Standard for everyday meal prep, Tight for freezer-burn-proof packs. |
Dry food mode vs moist food mode
According to FoodSaver’s official guidance, the difference between dry and moist modes is heat-bar temperature: Dry uses a lower temperature so it does not over-cook the seal line, while Moist runs hotter so the weld holds through residual moisture. The UAHFW1 follows the same convention, so importers can reuse generic dry vs moist instruction copy in their packaging without rewriting it.
Pulse, Blow and Seal Only — the modes most often missed
Pulse is the mode that wins reviews. End-users buying a 90 kPa machine for the first time invariably try to vacuum a bag of bread and end up with a brick. Pulse lets them tap-tap-tap to draw just enough air. Blow is the mode that wins repeat buyers — it is what re-pressurises a sous-vide canister or clears a crumb out of the heat strip. Seal Only is the mode that keeps the heat element alive: when an end-user wants to close a snack bag without a vacuum, Seal Only stops them from trying to force the Vacuum Seal mode through it.
The three-step vacuum strength selector
Most cheap 90 kPa sealers are binary: on or off. The UAHFW1 adds a Loose / Standard / Tight selector that limits how aggressively the pump pulls before the seal triggers. Loose is the safest setting for soft fruit and bread; Standard is the everyday meal-prep choice; Tight is for long-term freezer storage where every cubic centimetre of trapped air matters.
How to use the UAHFW1 step by step
The UAHFW1 ships with a single-page quick-start card. The expanded walkthrough below is what we recommend importers translate into their local language for inclusion as a printed insert — the conversion rate on return-buyers improves measurably when first-use confidence is high.
Sealing a dry-food bag
- Plug the UAHFW1 into a standard outlet and unlock the handle latch.
- Pull a bag length from the built-in roll storage, cut it with the integrated bag cutter, and seal one short end using Seal Only.
- Fill the bag with the dry contents — rice, beans, coffee — leaving about 5 cm of empty space at the top.
- Place the open end inside the vacuum chamber, lock the handle, and select Dry Food at Standard strength.
- Wait for the indicator to confirm vacuum and seal — usually 12-18 seconds — then unlock the handle and inspect the seal line.
Sealing a moist or marinated item
- Pre-freeze meat or fish for 1-2 hours so surface marinade is firm and less likely to be drawn into the chamber.
- Cut and pre-seal a bag, fold the open end outward 2-3 cm to keep the seal line free of liquid.
- Place the bag into the vacuum chamber, lock the handle, and select Moist Food at Loose strength.
- Use Pulse if you notice liquid travelling toward the seal — tap the button in short bursts to control the vacuum draw.
- After the seal completes, lift out the drip tray and rinse it — the UAHFW1’s removable drip tray is the part end-users thank you for most often.
Vacuum-sealing a mason jar or canister
- Attach the included external suction tube to the front port.
- Slide the other end of the tube onto the canister or mason-jar vacuum lid.
- Select the Can mode and start the cycle — suction continues until the canister is fully evacuated.
- Disconnect the tube. The canister lid will stay sealed under negative pressure until manually released.
For end-buyers who plan to vacuum-pack moist or liquid-heavy items frequently, the University of Maine Cooperative Extension reminds shoppers that vacuum packaging slows spoilage but is not a substitute for proper refrigeration or canning — a useful disclaimer to include in your packaging copy.
How we manufacture the UAHFW1
Vacuum Food Sealers China is the wholesale-only sister brand of Guilin Use at Home Technology Co., LTD. The UAHFW1 is produced in our own Guilin facility from in-house moulds — not re-badged from a trading company — which is why we can quote 500-unit MOQs at factory-direct pricing instead of the 2,000-5,000-unit floors that mainland trading agents typically enforce.
In-house tooling and private moulds
Each UAHFW1 casing is shot from a private ABS injection mould that we own outright. For OEM customers above 5,000 pcs/year, we can sub-cut the mould to embed a logo, alter the bezel shape or change the button cluster. The tooling deposit is amortised across the first order and is refunded against any second-year follow-on.
Quality control and pre-shipment testing
Every unit goes through a four-station QC pass: motor and PCB power-up, full-cycle vacuum draw test on a calibrated bag, seal-strip continuity check and a 60-second cosmetic inspection. AQL 2.5 sampling on every export carton is standard, and we can ship buyer-witness samples or arrange third-party QC (SGS, BV, TUV) at cost.
Certifications and 12-month warranty
The UAHFW1 ships with CE and RoHS documentation for European export — the two marks 90% of importers actually need. ETL, FCC and PSE files are available on request for the US, Canada and Japan respectively (lead time runs 4-6 weeks for a fresh certification round). All units carry a 12-month manufacturer warranty against motor, PCB and seal-strip defects; replacement parts ship by courier from Guilin direct.
Wholesale, B2B and OEM ordering
The UAHFW1 is sold strictly business-to-business through Vacuum Food Sealers China. We do not ship single units, run drop-ship campaigns or sell on consumer marketplaces — the brand is reserved for distributors, hotel groups and private-label customers who want a verified Guilin factory behind their catalogue.
MOQ, lead times and shipping terms
Standard MOQ is 500 units with a 15-30 day production lead time depending on order size and whether the bag roll, accessory pack or packaging needs custom artwork. Shipping terms we routinely write into contracts include FOB Shenzhen / Guangzhou, EXW Guilin and CIF to the buyer’s destination port. Payment is 30% T/T deposit, 70% balance against B/L copy, or 100% via Alibaba Trade Assurance.
Plug standards by market — single 100-220 V SKU
Because the UAHFW1 PCB accepts 100-220 V at 50-60 Hz, you only choose a moulded power cord per destination market. We stock NEMA 5-15 (US/CA), Schuko (EU), BS 1363 (UK/IE), AS/NZS 3112 (AU/NZ) and GB 1002 (CN) cords in production. The carton label, manual and warranty card cycle through five language masters; combined runs let you split a single PO across multiple markets without paying setup twice.
Private label, OEM and dropship options
Three programmes run alongside the stock UAHFW1: label-only OEM (your logo on the bezel and bag roll wrapper, otherwise stock unit) at 500 pcs MOQ, artwork OEM (custom carton, manual, blister, accessory pack) at 1,000 pcs MOQ, and full ODM (modified button cluster, casing colour, bezel etch) at 5,000 pcs MOQ. Dropship is not offered for the UAHFW1 because the carton size and 9.5 kg gross weight make single-unit courier rates uncompetitive.
Best fit by buyer type
The UAHFW1 has landed best with five wholesale buyer profiles in 2026: independent kitchen-appliance distributors building a sub-$50 retail SKU; hotel and resort housekeeping departments standardising on one machine for amenities and minibar refills; sous-vide and steak-club subscription brands looking for an in-box sealer; mid-tier butcher and fish-shop chains; and meal-prep delivery start-ups that need to pre-portion bulk protein cuts daily.
UAHFW1 vs other vacuum sealers in our range
Vacuum Food Sealers China carries roughly two dozen sealer SKUs at factory-direct pricing. The table below puts the UAHFW1 next to its closest siblings so buyers can quickly identify the right model for their target retail price point and end-user.
| Model | Power | Type | From $/unit (FOB, 500 MOQ) |
|---|---|---|---|
| UAHFW1 (this model) | 185 W · 90 kPa | 8-mode external, button operation, removable heat wire + drip tray | Quote on request |
| UAH34A | ~140 W · 85 kPa | Touchscreen automatic, roll storage + bag cutter | from $23.00/unit |
| UAH51TX | ~150 W · 95 kPa | 5-mode powerful suction, compact household automatic | from $22.40/unit |
| UAH26G | ~140 W · 85 kPa | Stainless steel touchscreen, automatic, external suction | from $11.90/unit |
| UAH34GX | ~120 W · 80 kPa | Compact touchscreen sealer with bag cutter | from $12.00/unit |

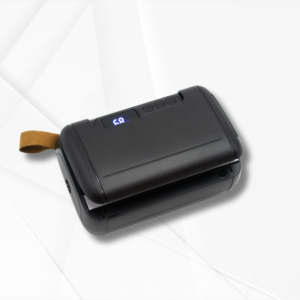

| UAH12H | USB rechargeable | Handheld mini sealer for mason jars and reusable bags | from $8.50/unit |
When to choose the UAHFW1 over compact units
If your end-user processes more than a few bags per week — meal-prepping a full family of four, portioning a deer at season’s end, vacuum-sealing roasted coffee for a small cafe — the UAHFW1’s 90 kPa, 35 cm bar and removable parts pay back the higher landed cost within months. Compact units such as the UAH12H or UAH34GX are better fits when the user mostly seals mason jars, single sous-vide steaks or a daily lunchbox.
When a touchscreen or commercial unit makes more sense
The UAH34A and UAH26G ship with touchscreen control panels — preferred by retailers targeting premium kitchens or showroom display merchandising. The UAHFW1 stays with a physical button cluster because long-term operational data shows buttons survive moist environments better than touchscreens and are cheaper to repair if they ever fail. For genuinely commercial volumes — 50+ bags an hour on a continuous shift — a chamber sealer rather than any external unit is the right answer; ask us for the chamber-sealer datasheet.
Buyer FAQ
What is the difference between the UAHFW1’s dry food and moist food modes?
Dry mode runs the heat strip at a lower temperature so it does not over-cook the bag film around dry contents such as rice, coffee or grains. Moist mode runs the heat strip hotter so the weld closes cleanly even when there is residual moisture from marinated meat, fish or leftovers. The UAHFW1 keeps the two modes separate to avoid the most common end-user warranty claim — weak seals on damp food.
Can one UAHFW1 unit work in the US, EU, UK, AU and most of Asia?
Yes. The PCB accepts 100-220 V at 50-60 Hz as one continuous range, so a single SKU covers virtually every retail electrical standard. Distributors simply request the matching moulded power cord at production — NEMA 5-15, Schuko, BS 1363, AS/NZS 3112 or GB 1002 — and ship the same carton globally.
What is the wholesale MOQ for the UAHFW1?
The standard MOQ is 500 units, sold in 2-piece master cartons (250 cartons = 500 units). Custom OEM artwork or button-layout changes carry a higher MOQ of 1,000 to 5,000 pcs depending on tooling complexity. Lead time is 15-30 days after deposit clears.
How long does vacuum sealing actually extend the shelf life of food?
FoodSaver and several university extension programmes report that vacuum sealing keeps food fresh up to three to five times longer than conventional storage in a fridge, freezer or pantry. The exact multiplier depends on the food, storage temperature and the quality of the seal — which is one reason we spec a wider 4 mm heat strip on the UAHFW1.
What is the difference between an external sealer like the UAHFW1 and a chamber sealer?
An external sealer like the UAHFW1 evacuates air from inside a bag through a sealing chamber. A chamber sealer evacuates air from an entire chamber holding the open bag, then welds it shut. External units are lighter, cheaper, easier to use and ideal for retail and prosumer markets. Chamber sealers handle liquids better and are the right call for genuinely commercial throughput — but their landed cost is 5-15x higher.
Why does the UAHFW1 carry a 12-month warranty, and what does it cover?
The 12-month manufacturer warranty covers the motor, PCB, heat strip and drip tray against defects in materials and workmanship. Distributors handle end-user RMAs; we ship replacement parts (heat wires, drip trays, power cords) by courier from Guilin so a faulty unit can be field-repaired without returning the carton.
Conclusion: is the UAHFW1 the right sealer for your catalogue?
For a wholesale buyer building a 2026 vacuum-sealer line in the sub-$50 retail bracket — whether the channel is independent kitchenware retail, hospitality minibar amenities, butcher and fish shops, sous-vide subscription boxes or private-label launches — the UAHFW1 is the model we recommend first. The combination of 90 kPa suction, eight distinct modes, a wide 4 mm seal strip, removable heat wire and drip tray, global 100-220 V input and a 500-unit MOQ is genuinely uncommon at this price tier.
It will not be the right machine for everyone: very low-volume gift retailers will be better served by the handheld UAH12H, premium showroom merchandisers usually want the touchscreen UAH34A, and high-throughput commercial kitchens need a chamber sealer rather than any external unit. But for the largest band of importers buying vacuum sealers from China this year, the UAHFW1 is the obvious starting point — and we can have a costed quote in your inbox the same business day.

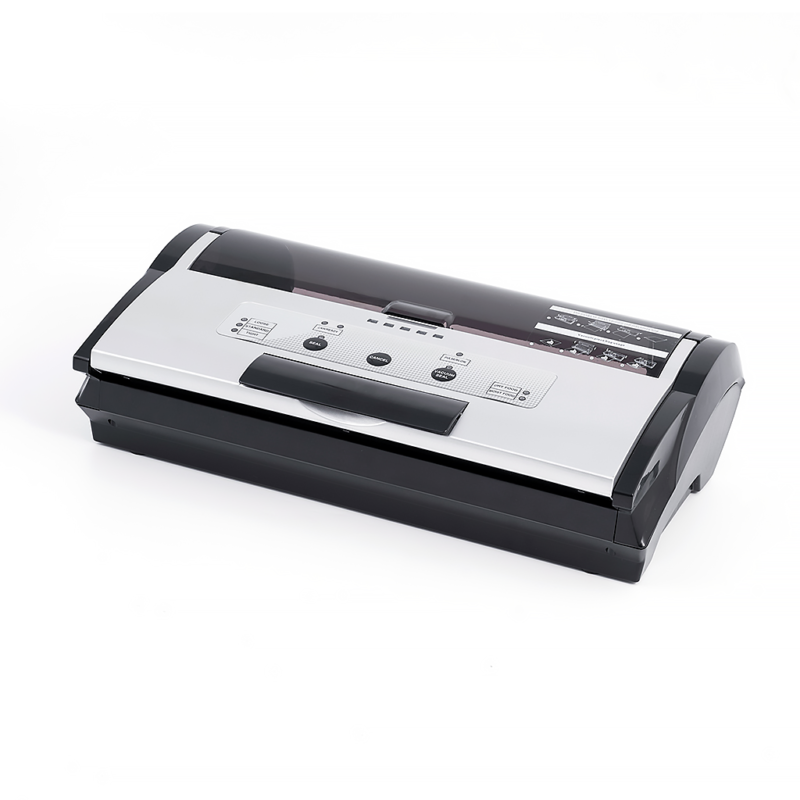

UAHFW1 — 8-Mode Automatic Vacuum Food Sealer
Model / SKU: UAHFW1
One-line spec: 90 kPa · 185 W · 100-220 V · 35 cm sealing bar · 8 modes · bag cutter · built-in roll storage
Factory-direct pricing: available on request · MOQ 500 units · 15-30 day lead time
