UAH27GX Roll Storage: Bag-Cutting Workflow for Buyers

UAH27GX turns bag making into a five-action bench sequence: pull, cut, end-seal, fill, and vacuum-seal. A roll storage vacuum sealer is an external-suction machine that keeps film beside its cutter and seal bar. Buyers should decide whether this sequence saves handling before weighing the verified $12.20-per-unit tier at 5,000 units.

// 01 — Key takeaways

2005

The documented factory was founded in 2005 and provides at least a 12-month warranty. See the factory Trust Center.

30 cm

Maximum bag-mouth width, paired with a listed 3 mm heating strip.

65 kPa

Catalogue suction with a 4 L/min ± 15% listed flow rate.

6 controls

Vac, Seal, Rice, Wet, Dry, and Stop are the named panel choices.

$12.20

Lowest recorded tier: 5,000 units at $12.20 per unit.

15 units

Units per 56.5 × 38.5 × 41.5 cm export carton.

// 02 — Workflow

What does roll storage change for the operator?

Built-in roll storage brings film sizing into the sealing station. The operator pulls the required length, slides the cutter, closes one end with Seal, fills the new bag, and runs the chosen vacuum cycle. The feature matters most when bag lengths vary; it adds less to a fixed-pouch program.

Who benefits from an integrated roll bay?

Distributors serving mixed portions, parts kits, or variable retail packs gain a visible step-up feature. Film, cutter, and bar stay together, while the user can make a short or long bag without fetching scissors. The filled bag still needs clear bench depth so its mouth can lie flat in the vacuum channel.

Private-label teams can bundle a defined roll, starter bags, and the external hose. Logo, color, control wording, manual language, destination plug, and included accessories should be frozen before artwork. That keeps the retail promise aligned with the configured machine and package.

Before selecting the housing, map three real station inputs: the shortest and longest bag, the filled product depth, and where completed packs leave the bench. The roll bay saves a separate storage step, but it cannot remove the clearance needed to lay a filled bag flat or route finished work away from the operator.

When are pre-cut bags the cleaner choice?

Pre-cut bags suit stable portion sizes, frequent operator changes, and lines that value repeatable dimensions. They remove the cutting and first-weld steps. UAH27GX can use prepared bags, so buyers can support both methods without claiming that roll film always lowers cost. Labor, scrap, film, and volume decide that calculation.

Where does this platform stop fitting?

UAH27GX is not a chamber sealer. Free liquids, bags wider than the bar, or heavy continuous duty require another equipment brief. A simpler external model can suit pre-cut-only programs; UAH63A fits briefs that name double pumps, automatic cover closing, and a documented roll compartment.

// 03 — Specifications

Which UAH27GX specifications govern the purchase?

The purchase specification should separate electrical input, vacuum performance, sealing geometry, and included accessories. UAH27GX lists 120W, 100–240V, 65 kPa suction, 4 L/min ± 15% flow, a 30 cm maximum seal width, a 3 mm heating strip, ABS housing, bags, and an external hose.

Catalogue values are shown once here; the signed order specification and configured unit are the production reference.

How should pressure and flow be read?

Suction and flow answer different questions. The pressure figure describes the available difference between the bag and surrounding air; flow describes air movement. Neither predicts every cycle time. Bag texture, fill level, folds, and mouth placement change the air path, so trials should hold the chosen film and load constant.

What remains destination-market specific?

The broad voltage range does not select the plug, cord, label language, manual, or compliance route. Those fields belong in the order file. The catalogue also uses waterproof touch-screen wording but gives no IP code, so retail copy should not add an immersion or ingress rating.

// 04 — Comparison

How does UAH27GX compare with three catalogue models?

Direct catalogue lookups place UAH27GX between two lower-priced compact platforms and the larger UAH63A dual-pump platform. The useful comparison is not wattage alone: buyers need to compare the cutter, onboard film storage, pump arrangement, suction range, and the quantity attached to each listed price.

Which model makes roll handling the deciding feature?

UAH27GX adds storage and a cutter to the same core ratings shown for UAH39G and UAH61G. UAH39G lists a cutter without storage; UAH61G lists neither. The featured model therefore fits a range where onboard roll handling must be obvious at shelf or demonstration level.

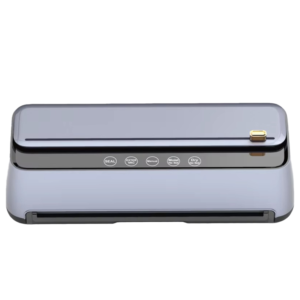

When does UAH63A justify the larger platform?

UAH63A names double pumps, automatic cover closing, a detachable water tray, and a 30 cm × 5 m roll bay. Its higher dry suction and flow ranges answer a different brief. Product size, carton, functions, and quantity tier prevent it from being a like-for-like landed-cost substitute.

Can the four price rows be treated as one quote?

No. The lowest rows occur at different quantities and exclude current freight, customization, packaging, compliance work, and Incoterms. The matrix screens platforms; a dated quotation compares one quantity, configuration, and delivery basis.

For retail range planning, compare one use story per model. UAH61G is the compact baseline, UAH39G adds cutting, UAH27GX combines cutting with onboard film, and UAH63A changes the pump and lid platform. This keeps the assortment from being reduced to four unmatched tier prices.

// 05 — Acceptance

What should the acceptance checklist measure?

Use one acceptance checklist built around observable operator actions and package results. Record the bag material, width, load, mode, and cycle spacing, then assess roll tracking, cutter travel, both welds, vacuum behavior, controls, hose connection, and multi-bag placement. A single vague pass mark cannot locate a fault.

Run the checklist in the same order for each candidate unit and retain the film lot, operator, date, and result. Consistent inputs make a changed cutter path or weld visible without inventing a universal cycle-time threshold that the catalogue does not provide.

1. 1. Roll path and cutter

   Pull the shortest and longest planned bag lengths. Record snagging, sideways film travel, cut angle, edge quality, and material left for the first weld. Place the filled bags on the intended bench to expose depth or mouth-alignment problems.

2. 2. First weld and final weld

   Inspect each cooled weld across its full width for channels, wrinkles, contamination, open edges, or distortion. A roll-made bag has two independent seals, so the worksheet should identify which end failed and the film used.

3. 3. Six control responses

   Exercise Vac, Seal, Wet, Dry, Stop, and Rice separately. The fetched record names Rice but does not define its timing or purpose; the configured manual must provide that meaning. Compare Wet and Dry with the same bag, and use Stop during an active cycle.

4. 4. Hose and multi-bag setup

   Connect the included hose to a compatible valve and record fit, sequence, release, and container state after disconnection. For several bags, record mouth widths and spacing across the bar; the catalogue lists the function but does not give a fixed bag count.

Roll storage earns its footprint when cutting, the first weld, filling, vacuuming, and the final weld become one repeatable sequence.

— Mi Lan, Founder, Guilin Prime Household Products Co., Ltd.

// 06 — Manufacturing

How we manufacture the UAH27GX vacuum sealer

Vacuum Food Sealers China links the agreed UAH27GX build to four factory stages: tooling and mould control, pump and PCBA burn-in, seal and vacuum quality control, then destination-market compliance and warranty handling. The sequence connects physical interfaces, electrical response, package results, and the final order file.

// 07 — Commercials

How do price, MOQ, carton, and terms shape the order?

UAH27GX has four recorded catalogue tiers: $13.00 at 1 unit, $12.80 at 20, $12.60 at 500, and $12.20 at 5,000. The typical MOQ is 100 units, but no 100-unit price is listed. That quantity therefore needs a current quotation, not an interpolated figure.

What goes into the freight brief?

The export carton is 56.5 × 38.5 × 41.5 cm, holds 15 units, and weighs 17.5 kg. Packed-unit dimensions are 37 × 18 × 7.8 cm; product dimensions are 35 × 13.6 × 7 cm with 0.98 kg listed gross weight. No container quantity appears in the record.

A freight enquiry should state the planned order quantity and whether retail-pack changes affect the master carton. The recorded carton is a factual starting point, while container loading depends on the final pack plan and carrier method. This avoids presenting an unlisted container count as catalogue data.

Which terms belong in the purchase order?

Standard terms are 30% deposit and 70% balance before shipment by T/T, with Alibaba Trade Assurance supported. FOB China, EXW, and CIF are listed options. The order should name the chosen Incoterm and location, currency, payment milestones, configuration, packaging, and freight responsibility.

What timing is recorded?

The product record lists about 15–30 days for bulk production after deposit and 3–7 days for samples. Artwork, manual, plug, accessories, and packaging scope belong on the same dated timeline.

How can OEM scope stay controlled?

Freeze logo, color, panel wording, manual language, plug, bags, hose, and retail pack before mass-production artwork. A change log should identify the field, revision, owner, and effective lot so factory records and market copy describe the same configuration.

// 08 — Food safety

What food-safety limits belong in the buyer brief?

Vacuum packaging removes air and seals a package; it does not sterilize food or make perishable food safe at room temperature. Retail instructions must retain refrigeration, freezing, hygiene, and date-label guidance. Commercial operators also need the controls required for their food, process, jurisdiction, and reduced-oxygen packaging program.

What is reduced-oxygen packaging?

The current FDA Food Code 2022, read with its current Food Code supplement, treats vacuum packaging as a form of reduced-oxygen packaging. The model code addresses hazards and controls for applicable retail and food-service processes. A sealed-looking package alone is not a food-safety plan.

Does vacuum packaging replace refrigeration?

No. The USDA Food Safety and Inspection Service explains that vacuum packaging removes air and can limit oxygen-related quality loss, while normal safe handling still applies. Manuals should avoid one shelf-life promise because food type, starting quality, film, temperature, and handling change the result.

What should the film statement cover?

Specify food-contact-suitable material for the intended market and use. The machine record names food-sealing bags, but it does not replace the film supplier’s declaration or the operator’s process controls.

// 09 — FAQ

What do buyers ask before selecting the workflow?

Buyer questions should close gaps left by the workflow, not repeat the specification table. The practical issues are whether pre-cut bags remain usable, what film information belongs in the order, how an undefined panel label is handled, and which food-safety limits must stay in retail instructions.

// 10 — Conclusion

Which roll-storage decision should a buyer make first?

Start with the bag-making sequence. If operators regularly need different lengths and can use one clear bench station, onboard film and a cutter have a defined role. If pouch sizes are fixed, compare the added housing and handling feature with a pre-cut-only platform before moving to quotation.

Use the acceptance checklist with the intended film and load, then place the chosen configuration, packaging, and delivery basis in one dated order file. Review the UAH27GX product page or the Vacuum Food Sealers China homepage.
