External Vacuum Sealer: Best 32cm-Seal Wholesale Guide

A vacuum sealer’s seal bar is a hard ceiling on the bags it can close: put a 31cm bag opening on a 30cm bar and the vacuum simply fails. An external vacuum sealer is a countertop machine that draws air from a bag placed outside the unit and heat-seals the open end, and for a wholesale buyer the seal-bar width in centimetres decides which bag rolls your customers can actually use. This guide uses the UAH45A — a 135W external sealer with a 32cm seal bar, wet and dry modes and spot pumping — and its real factory-direct tiers, so you can match the machine to the bags your market runs and quote your own margin from catalog facts, not guesswork.

// 01 – Key takeaways

What is an external vacuum sealer?

An external vacuum sealer is a compact machine that grips the open mouth of a bag placed outside its body, evacuates the air, then heat-seals the edge in one guided cycle. It is the volume-selling format in food-sealer retail because it is small, light and low-cost, unlike a chamber sealer that encloses the whole bag. The UAH45A is a 135W external unit with a 32cm seal bar.

The mechanics are simple and that is the point. An external suction sealer pulls air out from the open end of the bag, clamps the bag mouth, evacuates it, and welds the edge, per Avid Armor’s suction-vs-chamber breakdown. Because the bag stays outside, the machine can be light and cheap — the UAH45A weighs 0.68kg and ships 20 to an export carton.

For a reseller, that format is the mass market. External sealers dominate household and light-commercial shelves precisely because they are portable and affordable, which is why the external vacuum sealer is the workhorse SKU in most sealer catalogs and where your volume lives.

Why seal-bar width decides the sale

Seal-bar width is the single hard limit on which bags a machine can close, so it should lead your buying decision. A 32cm bar like the UAH45A’s seals bag openings up to about 31cm; a 30cm bar tops out around 28–30cm. Buyers who portion large cuts or run wide rolls need the wider bar, and the extra 2cm is a genuine spec difference, not marketing.

The bag-fit rule to pass on

The rule is unforgiving. You cannot seal a bag that extends past the heating element, and a bag should sit at least 1–2cm narrower than the bar for a flat, airtight closure, per Food Vacuum Sealers Australia’s sizing guide. So a 32cm bar performs best with a 31cm bag opening, while a 30cm bar wants a 28–30cm bag. Print this on your quick-start card and you cut a whole class of “the seal failed” returns that are really bag-width mistakes.

Who needs the wider 32cm bar

Match the bar to the buyer. Distributors serving butchers, anglers and bulk meal-preppers hit the 30cm ceiling fast on large portions, and for them the UAH45A’s 32cm bar is the difference between a sale and a return. For customers packing standard household portions, a 30cm sibling such as our UAH55G is enough. Stocking both bar widths lets you cover the whole shelf.

The seal bar is a hard limit, not a soft preference. If the bag mouth clears the heat strip, you sell a working machine; if it does not, you sell a return. Buy the width your customers’ bags actually need.

— Mi Lan, Founder, Guilin Use at Home Technology Co., LTD

Wet and liquid sealing on an external unit

External sealers can handle moist and liquid loads when they offer a dedicated wet mode, which lowers suction and lengthens the seal so fluid is not drawn into the bar. The UAH45A adds a wet mode, liquid vacuum sealing and spot pumping, giving buyers control over marinades, sauces and juicy cuts that trip up a dry-only machine.

Why wet loads are hard

Liquids fight the vacuum. When pressure drops, thin liquids flow, foam and creep toward the seal line, and any fluid that reaches the heat strip ruins the weld. Buyer guides advise choosing models with a moist or liquid mode that reduces suction pressure or extends sealing time to keep fluid off the bar, as KitchPrep’s wet-food roundup explains. The UAH45A’s wet mode does exactly that.

What spot pumping adds

Spot pumping is manual pulse control: the operator taps the vacuum on and off to stop the draw the instant liquid nears the seal, then seals. Combined with the wet setting, it lets an end user pack soups, marinades and moist meats without pulling liquid into the machine. That capability is a merchandising talking point for buyers targeting sous-vide and meal-prep customers, where wet packing is routine.

UAH45A spec sheet

This external vacuum sealer pairs a 135W motor with a 55–70kPa dry-suction range, a 32cm seal bar and a 5mm heating strip in a 0.68kg brushed-metal-finish ABS body. It runs on 100–240V, so one SKU serves every export market without a voltage variant. Below is the factory record, spec by spec, with why each line matters to a buyer.

Reading the price tiers for margin

The UAH45A runs $10.50 at the 10-unit tier and steps down to $10.40 at 500, $10.00 at 1,000 and $9.10 at 5,000 — a real factory tier ladder, not a rounded estimate. Your margin lives in the gap between a tier price and your shelf price, so quote from the tier that matches your real order size.

These are catalog values, quoted directly. Every figure below is the featured product’s own tier or a sibling we fetched by SKU; nothing here is invented or adjusted.

Notice the shape of the curve. The price holds nearly flat from 10 to 1,000 units, then the real break arrives at container scale — $9.10 at 5,000. If you are testing the line, order at the 500 or 1,000 tier to prove sell-through, then consolidate to the 5,000 tier once the SKU is a repeat mover.

How the UAH45A compares to its siblings

Against its own family, the UAH45A is the wide-seal, wet-capable pick: a 32cm bar and 5mm weld versus the 30cm bar and 3mm strip on the value UAH55G and the feature-rich UAH36G. If a buyer needs wider bags and stronger wet handling, this is the model; if they want the lowest entry price or a bag cutter, a sibling fits better.

Every figure in this table was pulled by a direct SKU lookup on each model, not read off a random sample. Where a sibling out-specs the featured unit, the table says so.

Read it this way. The UAH55G is the value anchor — a 30cm bar and 65kPa at the lowest floor price of $8.20 at 5,000 units. The UAH36G adds an LED touchscreen and a built-in bag cutter for merchandising appeal at $8.30 at 5,000. The UAH45A trades up to the 32cm bar, a 5mm weld and true wet/liquid handling, landing at $9.10 at 5,000 — the choice when bag width and wet loads drive the buyer’s decision.

Food-safety facts your buyers must know

Vacuum sealing is not a kill step. It removes oxygen to slow aerobic spoilage and can extend shelf life 3 to 5 times, but it does not stop anaerobic pathogens, so sealed perishables must stay refrigerated or frozen. Passing this along protects your buyers from returns rooted in misuse, not machine faults.

What sealing does and does not do

The upside is real: without oxygen, mold and aerobic bacteria slow sharply, and vacuum packaging commonly extends shelf life several times over ordinary storage. But the USDA treats vacuum-sealed foods as ordinary perishables — clean, separate, cook and chill still apply, and if a food needed refrigeration before sealing, it still does after. Regulators are explicit about the risk: Clostridium botulinum is a spore-forming bacterium that grows without oxygen and produces a heat-resistant toxin, per USDA NIFA food-safety guidance.

The refrigeration rule to pass on

The temperatures are non-negotiable. Keep the fridge at 40°F (4°C) or below and the freezer at 0°F or below, and never treat a vacuum seal as a substitute for refrigeration or canning, as the USDA vacuum-sealing bulletin stresses. For commercial chilled foods the UK Food Standards Agency sets a default 10-day shelf-life limit at 3–8°C unless evidence supports longer. Print this on your quick-start card and you cut a whole class of nuisance claims.

How we manufacture the external vacuum sealer

We build the UAH45A in-house in Guilin, China, across four controlled stages: tooling and molding, pump and PCBA burn-in, seal-integrity and vacuum testing, then compliance and warranty. That chain is why a container of units ships to spec instead of arriving as a lottery.

B2B sourcing: MOQ, lead time and terms

MOQ is typically 100 units per model, with trial orders available on request. Bulk production runs about 15–30 days after deposit, and samples ship in 3–7 days. Standard terms are a 30% deposit with the 70% balance before shipment, FOB China, with Alibaba Trade Assurance supported.

Best for distributors and private-label

The UAH45A suits distributors who need a wide-seal, wet-capable unit in their household and light-commercial line, and private-label buyers who want a premium brushed-metal look under their own brand. OEM and ODM cover logo, packaging, color and specification changes, so the same reliable platform can carry your identity.

Lead time, shipping and payment

Plan around a 100-unit MOQ, a 15–30-day production window after deposit, and export by sea or air on FOB, EXW or CIF terms. Payment is 30/70 T/T with Alibaba Trade Assurance available. Because the unit runs on 100–240V, you ship one SKU to every market and skip the plug-and-voltage variant headache.

Who should buy this external vacuum sealer?

Choose this external vacuum sealer when your buyers need a wider 32cm seal bar and real wet-and-liquid handling — butcher, angler, sous-vide and meal-prep customers. Step down to the UAH55G for the lowest entry price on standard household portions, or the UAH36G when a bag cutter and LED screen close the sale. All three ship from the same factory on the same terms.

In short, the external vacuum sealer is the volume format, and the UAH45A is its wide-seal, wet-capable option: a 32cm bar and 5mm weld with 55–70kPa dry suction, from $10.50 down to $9.10 in quantity. Confirm the seal-bar width against the bags your customers run, pick the tier that matches your order size, and you can quote your own margin with confidence.

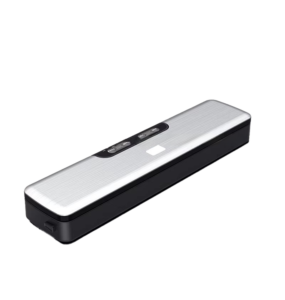

// Featured model – UAH45A

Vacuum Sealer, 135W, 32cm Seal, 4 Auto Modes

135W · 55–70kPa dry suction · 32cm seal bar · 5mm strip · wet + spot pumping · 100–240V · brushed-metal ABS · 0.68kg

Factory-direct from $9.10/unit

View productRequest a quote
