95 kPa Vacuum Sealer: What Dual Pumps Change for Buyers
95 kPa Vacuum Sealer: What Dual Pumps Change for Buyers
At $27.00 per unit in the 2,000-unit catalog tier, the wrong bag-and-pump match can erase the value of UAH63AX before shipment. A 95 kPa vacuum sealer is an external-clamp machine that evacuates an embossed bag through its open edge, then heat-seals the mouth; this dual-pump model pairs that rating with a 30 cm bar.
// 01 — Key takeaways
Founded in 2005, the factory operates seven production lines across 15,000 m²; its Trust Center documents the Guilin facility and 205-person workforce.
The catalog maximum applies to dry suction; wet suction has its own −1–65 kPa range.
The sealing width matches the built-in 30 cm × 5 m roll compartment and sliding cutter.
The listed airflow carries a ±15% tolerance and must be read separately from pressure.
The 100–240V external sealer combines dual pumps, touch controls, and automatic cover closing.
The lowest published unit price belongs to the 2,000-unit tier; the ladder starts at 10 units.
// 02 — Suction decision
What does the 95 kPa vacuum sealer rating settle?
The 95 kPa ceiling establishes UAH63AX as the deepest-suction model in this three-model catalog comparison, but it does not predict the whole pack. A buyer should pair the dry and wet pressure ranges with flow, bag channels, seal-band width, and the product being packed before choosing it.
What does 95 kPa tell a buyer?
The figure is the catalog maximum for dry suction. This 95 kPa vacuum sealer lists a 60–95 kPa dry range and a distinct −1–65 kPa wet range, so an operator can use less draw where moisture or a delicate product needs control.
Dual pumps describe the machine architecture. They do not, on their own, promise a cycle time, service life, or finished residual-oxygen level. Those outcomes depend on the bag, load, seal surface, and duty pattern.
Why does 4–8 L/min matter separately?
Flow describes how much air the system moves over time, while kPa describes pressure difference. The listed 4–8 L/min ±15% range helps a buyer frame an evacuation trial with the actual bag volume instead of treating a pressure number as a speed guarantee.
Buy the pressure rating only after the bag, seal width, and moisture mode match the operator’s real pack.
— Mi Lan, Founder, Guilin Use at Home Technology Co., LTD
// 03 — Specifications
Which 95 kPa vacuum sealer specs affect the purchase?
UAH63AX combines 135W input, 100–240V operation, a 30 cm seal, separate wet and dry suction ranges, dual pumps, touch controls, roll storage, and an external hose. The practical buying question is whether that group fits the target bag, market plug, food moisture, and operator workflow.
UAH63AX spec sheet
Rev. 2026.08
The table carries the featured product’s own catalog fields. Put the selected configuration in the signed specification and run the intended embossed bag on a pre-production unit.
| Spec | This model | Why it matters |
|---|---|---|
| Material | ABS | Sets the housing construction named for the order. |
| Accessories | Food sealing vacuum bags; external vacuum hose | Defines the starting pack-out and canister connection. |
| Power | 135W | Belongs on the electrical label and market file. |
| Voltage | 100–240V | Supports one voltage range across multiple markets; the plug still follows destination. |
| Sealing width | 30 cm | Sets the maximum listed mouth width for a bag. |
| Heating strip width | 5 mm wet; 7 mm dry | Gives each moisture mode a catalog seal-band value. |
| Dry suction | 60–95 kPa | Provides an adjustable range for dry loads. |
| Wet suction | −1–65 kPa | Separates moisture-sensitive operation from the dry maximum. |
| Flow rate | 4–8 L/min ±15% | Frames air movement during a bag trial. |
Which controls reduce operator steps?
The illuminated touch panel, automatic cover closing, sliding cutter, and 30 cm × 5 m roll compartment keep bag preparation and sealing at one station. A detachable water tray contains drawn moisture, while the external-vacuum connection supports compatible canisters.
Which dimensions affect shelf planning?
The product measures 40.5 × 16 × 11.5 cm and has a listed gross weight of 1.64 kg. Its retail pack measures 43.5 × 15 × 20.2 cm, giving a distributor concrete shelf and single-pack storage dimensions.
// 04 — Model comparison
How does this 95 kPa vacuum sealer compare?
UAH63AX leads this set on listed dry suction and adds dual pumps, while UAH38G occupies the lower-price 65 kPa position and UAHFW4 pairs 75 kPa with 12 L/min flow. The quantity behind each “from” price differs, so specification fit should come before unit-price comparison.
Three models, three cost positions
Every number below comes from a direct SKU record for UAH63AX, UAH38G, or UAHFW4. The table preserves each model’s own quantity basis instead of pretending the three prices apply at the same order volume.
| Model | Power | Pressure and flow | Seal width | Published from price |
|---|---|---|---|---|
| UAH63AX Featured | 135W | 60–95 kPa dry; 4–8 L/min ±15%; dual pumps | 30 cm | $27.00 at 2,000 units |
| UAH38G | 120W | 65 kPa; 4 L/min ±15% | 30 cm | $8.30 at 5,000 units |
| UAHFW4 | 110W | 75 kPa; 12 L/min ±15% | 28 cm | $26.42 at 1,000 units |
Where does UAH63AX earn its higher tier?
UAH63AX adds the deepest listed dry range, dual pumps, a 5 mm wet and 7 mm dry heating-strip specification, automatic cover closing, and roll storage. Buyers paying for those fields should make each one part of the acceptance record.

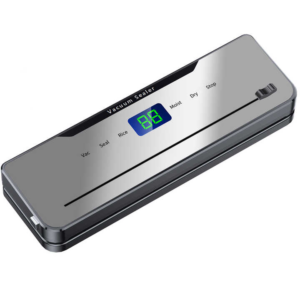

When is UAH38G the leaner specification?
UAH38G keeps a 30 cm seal at 120W, 65 kPa, and 4 L/min ±15%. Its published ladder reaches $8.30 at 5,000 units. It suits programs that do not need the featured model’s 95 kPa dry ceiling or dual-pump architecture.
When does UAHFW4 fit the brief?
UAHFW4 offers 75 kPa suction, 12 L/min ±15% flow, a 28 cm seal, button controls, roll storage, and a cutter. Its 110W, ABS-and-stainless-steel construction targets a different balance of flow, width, controls, and material.
// 05 — Acceptance tests
What should a buyer test before a purchase order?
Test the 95 kPa vacuum sealer with the production bag, representative dry and moist loads, the destination plug, and the planned operator sequence. Record evacuation behavior, seal continuity, liquid movement, cutter action, lid closure, and recovery between cycles. This turns catalog fields into a model-specific acceptance protocol without inventing pass rates.
Does the bag evacuate without channel leaks?
Cut the intended embossed roll to a representative length, keep the mouth flat across the 30 cm bar, and run the dry range used by the operator. Inspect for wrinkles, trapped product, channel collapse, and air returning through the mouth after sealing.
Does the wet mode protect the seal zone?
Use the real moist product and the listed wet mode. Observe whether liquid reaches the detachable tray, whether the operator can stop the draw in time, and whether the 5 mm wet seal band remains continuous across the bag mouth.
Can operators repeat the full sequence?
Have the intended user pull the roll, cut it, seal one end, load the product, select a mode, close the lid, and remove the pack. Record errors and cycle observations against one procedure rather than changing the method between runs.
// 06 — Buyer fit
Who is this 95 kPa vacuum sealer for?
UAH63AX fits distributors positioning a workflow-integrated countertop sealer between entry external models and chamber machines. Choose it where operators change bag lengths and handle both dry and moist packs. Choose another format where free-flowing liquids or documented continuous-duty throughput define the buying brief.
Which distributors should shortlist it?
Shortlist UAH63AX when the range needs a clear step-up from entry external sealers and the channel can explain bag choice and moisture modes. Destination plug, control language, packaging, logo, and accessory set remain commercial configuration fields rather than reasons to prefer one pump rating.
Which operators benefit from roll storage?
Meal-prep counters, specialty food retailers, hotel kitchens, and household lines benefit when portions change length and bag preparation must stay at one station. Programs built around fixed pre-cut pouches gain less from integrated roll handling.
When is an external sealer the wrong type?
A chamber machine is usually the clearer category for repeated liquid-rich packs because the entire pouch sits inside a chamber. UAH63AX is an external-clamp design; wet mode and its tray manage moisture, but they do not turn it into a chamber sealer.
// 07 — Commercial terms
What do the UAH63AX price tiers and MOQ mean?
The 95 kPa vacuum sealer price ladder starts at 10 units for $31.00 each and reaches $27.00 at 2,000 units. The product FAQ separately states a typical 100-unit MOQ for OEM production, with smaller trials on request. Stock-tier access and customization minimums answer two different purchasing questions.
What do the four published tiers say?
The featured SKU has four exact catalog breaks. They show how its recorded unit price changes with quantity, without adding freight, duty, tooling, artwork, or a destination-specific compliance scope that is not present in the product record.
| Quantity | Catalog discount | Published unit price |
|---|---|---|
| 10 units | $0.00 | $31.00 |
| 500 units | $1.00 | $30.00 |
| 1,000 units | $2.00 | $29.00 |
| 2,000 units | $4.00 | $27.00 |
Is the MOQ 10 or 100 units?
Ten units is the first published price quantity for the standard catalog SKU. The featured product’s FAQ names 100 units as the typical MOQ for OEM work and says smaller trial orders are available on request. Custom color, logo, controls, or packaging can change the commercial scope.
Which terms shape the final quote?
The record lists 3–7 days for samples and 15–30 days for bulk production after deposit. It also names 30/70 T/T, Alibaba Trade Assurance, FOB China from Shenzhen or Guangzhou, and EXW or CIF alternatives. A quote should state the chosen term beside the SKU and quantity.
How should the export carton enter logistics planning?
UAH63AX packs eight units per export carton. The factory record lists a 60.8 × 44.7 × 42 cm master carton at 18.6 kg. Use those values for case counts and initial warehouse planning; the freight forwarder sets the pallet pattern and chargeable weight for the chosen route.
// 08 — Manufacturing
How we manufacture UAH63AX
Manufacturing control for the 95 kPa vacuum sealer follows four linked stages: housing tooling, pump and PCBA burn-in, seal and vacuum quality control, then destination compliance and warranty release. The sequence keeps mechanical fit, controls, suction, heating, markings, and pack-out tied to the same signed product specification.
In-house tooling and private mould
Tooling work sets the ABS housing, lid fit, cutter track, roll compartment, tray seat, and control-panel openings. The physical configuration follows the selected color, logo position, and interface artwork.
Pump and PCBA powered function check
Before final assembly, the factory powers the dual-pump set and control board, then checks pump start, sensor response, touch-panel illumination, and automatic cover control.
Seal-integrity and vacuum quality control
Quality control covers lid closure, cutter travel, dry and wet modes, suction response, heating-strip contact, tray fit, and external-vacuum operation. The order protocol supplies the exact bag and load used for acceptance.
Certification names and 12-month warranty
CE and RoHS are named for export compliance, with the destination and product file defining the applicable scope. The product record states a 12-month warranty, and the pack-out carries the agreed label, manual, accessories, and shipping marks.
// 09 — Food safety
How should food-safety instructions shape the offer?
A vacuum sealer removes air; it does not make perishable food shelf stable or replace refrigeration, freezing, canning, or a regulated food-safety plan. Distributors should keep that distinction in manuals and training, especially for meat, poultry, seafood, sous vide, and any food-service use of reduced-oxygen packaging.
What is vacuum packaging and modified atmosphere packaging?
The USDA Food Safety and Inspection Service explains that vacuum packaging removes air to create a vacuum. Modified-atmosphere packaging instead replaces some or all oxygen with another gas. UAH63AX performs external vacuum packaging; it is not a gas-flush system.
Can Clostridium botulinum be in vacuum-packaged foods?
Yes. USDA guidance on vacuum-packaged foods warns that some pathogens favor low-oxygen conditions. It tells users to keep perishables refrigerated at or below 40°F or frozen at 0°F, and says vacuum packaging does not replace a safe room-temperature preservation process.
Is sous vide packaging shelf stable?
No. USDA’s shelf-stable food guidance says sous vide products require refrigeration. A strong vacuum and intact seal support packaging quality, but they do not remove the cold-chain requirement or create a shelf-stable product.
Why does the FDA Food Code matter to food service?
The FDA Food Code 2022 is a model for retail and food-service safety provisions, including reduced-oxygen packaging. A hotel, restaurant, or retailer should build its process around the rules adopted by its jurisdiction, not around a machine rating alone.
// 10 — Purchase order
What belongs on the UAH63AX purchase-order checklist?
The 95 kPa vacuum sealer purchase order should identify UAH63AX, quantity tier, 100–240V rating, destination plug, control language, logo, color, packaging artwork, included bags and hose, shipping marks, Incoterm, payment schedule, lead-time basis, warranty, and the signed acceptance protocol. Each field closes a different source of order ambiguity.
Which electrical fields belong on the PO?
State 135W and 100–240V, then add the destination plug, label language, control-panel artwork, and required market file. Do not use the wide voltage range as a substitute for a market-specific cord, plug, marking, and document decision.
Which pack-out fields belong on the PO?
List the food sealing vacuum bags, external hose, roll requirement, manual, retail artwork revision, barcode, and shipping marks. Reference the logistics record for master-carton quantity, dimensions, and weight instead of restating those values here.
What must the signed specification freeze?
Freeze the SKU, housing color, logo position, mode labels, wet and dry settings, seal width, accessories, artwork revision, quantity, unit price, Incoterm, and acceptance method. That record joins the physical unit to the commercial order without repeating the test procedure in every document.
// 11 — Buyer questions
Frequently asked questions
These answers separate pressure from flow, explain the roll-and-cutter workflow, and state the featured model’s exact price ladder and OEM terms. They are based on the UAH63AX product record and are intended to help a buyer turn a broad 95 kPa vacuum sealer search into a defined request.
Is a 95 kPa vacuum sealer enough for food packaging?
What is the difference between suction pressure and flow rate?
Can UAH63AX make custom-length vacuum bags?
What is the UAH63AX wholesale price?
What OEM terms are listed for UAH63AX?
// 12 — Conclusion
Conclusion: choose by bag, seal, and order model
Choose UAH63AX when higher dry-suction headroom and on-machine bag preparation justify its price position. Choose UAH38G for a leaner entry platform, UAHFW4 when its higher listed flow suits the brief, or a chamber machine for frequent free liquids. The buyer’s bag-and-load trial should settle the final decision.
Vacuum Food Sealers China focuses on vacuum food sealers and sealing supplies. Send the bag structure, food type, target market, annual quantity, artwork scope, and required trade term with the inquiry so the quotation can stay tied to a real configuration.

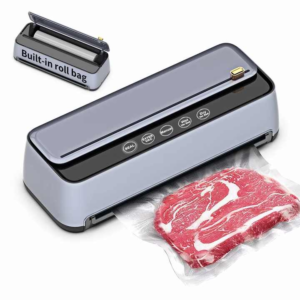

Featured model: UAH63AX
This is the step-up external platform for retail programs that value suction headroom and on-machine bag preparation over the lowest catalog entry price.
UAH63AX · Featured model
135W dual-pump 95 kPa vacuum sealer
60–95 kPa dry suction · 30 cm seal · 100–240V · roll storage and cutter
From $27.00/unit at 2,000 units
