120W Vacuum Sealer: What 65 kPa and 30 cm Change for Buyers
At the 5,000-unit tier, UAH54G is listed at $9.20 per unit, so seal-width fit must be decided before the purchase order. A 120W vacuum sealer is an external-suction machine that removes air from embossed pouches and closes a heat seal; this model pairs 65 kPa suction with a 30 cm bar.
// 01 — Key takeaways
What are the UAH54G key takeaways?
The 120W vacuum sealer fits programs that need a compact 100–240V external machine with a 30 cm bar, 65 kPa suction, wet and dry controls, and an external hose. The buying decision turns on pouch width, liquid handling, carton planning, interface needs, and the order volume tied to each catalog price.
Founded in 2005, the company now operates seven assembly lines in a 15,000 m² facility. See the factory Trust Center.
Catalog suction pressure for the UAH54G external-vacuum system.
Maximum listed sealing width over a 3 mm heating strip.
The separate flow specification; it should not be confused with pressure.
Listed per-unit price at 5,000 units, before freight and order-specific work.
Recorded export-carton quantity, with a listed carton weight of 17 kg.
// 02 — Specifications
Which specs decide whether UAH54G fits a program?
Start with the pouch, not the wattage. The 120W vacuum sealer accepts seals up to 30 cm wide, uses a 3 mm heating strip, and combines 65 kPa suction with 4 L/min ±15% flow. Its 100–240V input, ABS body, wet and dry modes, detachable base, and hose port define the operating envelope.
UAH54G specification sheet
Rev. 2026.08
| Specification | UAH54G | Why it matters |
|---|---|---|
| Material | ABS | Defines the external housing material. |
| Rated power | 120W | Electrical input for market and test planning. |
| Voltage | 100–240V | Supports one broad voltage range; the market plug still belongs in the order file. |
| Suction | 65 kPa | Pressure figure for the external-vacuum circuit. |
| Flow rate | 4 L/min ±15% | Describes air movement, not final seal quality. |
| Sealing width | 30 cm | Sets the upper pouch-mouth width. |
| Heating strip | 3 mm | Defines the listed seal-band width. |
| Accessories | Vacuum bags and external vacuum hose | Supports pouch trials and compatible external containers. |
Pressure and flow answer different questions
For UAH54G, pressure indicates how large a pressure difference the pump system can produce. Flow indicates how quickly air can move under stated conditions. A buyer needs both because pressure alone does not predict how long a real embossed pouch will take to evacuate. UAH54G lists 65 kPa and 4 L/min ±15%; neither number should be replaced by a wattage guess.
Seal geometry sets the pouch boundary
The 30 cm width is the practical first filter for a bag program. The pouch mouth, its embossed channel, and the clean area placed across the 3 mm strip must fit the bar. The model can seal multiple small bags at once, but the combined mouths still have to sit flat within that same usable width.
Controls affect operator handover
The 120W vacuum sealer touchscreen provides Vac, Seal, Rice, Wet, Dry, and Stop modes. The detachable base gives operators access to a part of the machine that can collect residue, while the external hose port extends the machine beyond pouches. Those are workflow features; they do not turn an external sealer into a chamber machine.
// 03 — Comparison
How does UAH54G compare with nearby models?
At 5,000 units, UAH54G’s $9.20 price sits between UAH34GX at $8.30 and UAH01T at $11.37. UAH34GX keeps the same 120W, 65 kPa, and 30 cm fundamentals while adding a bag cutter. UAH01T moves to 135W, 70 kPa, a 31 cm seal, and a 5 mm strip. Each sibling row uses its directly fetched record.
Three directly fetched catalog records
| Model | Power | Suction and seal | Distinct hardware | Lowest listed tier |
|---|---|---|---|---|
| UAH54G | 120W | 65 kPa · 30 cm · 3 mm strip | Waterproof touchscreen, hose, detachable base | $9.20/unit at 5,000 |

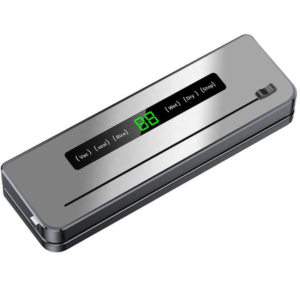

| UAH34GX | 120W | 65 kPa · 30 cm · 3 mm strip | LED touch screen and built-in bag cutter | $8.30/unit at 5,000 |
| UAH01T | 135W | 70 kPa · 31 cm · 5 mm strip | Seven modes and watch-style display | $11.37/unit at 5,000 |
Choose UAH54G for the compact control set
UAH54G makes sense when the brief calls for its waterproof touchscreen, Rice mode, external hose compatibility, and detachable base. The operator sequence and packaged food—not wattage alone—decide whether those controls match the task.
Choose UAH34GX when cutting is part of the station
UAH34GX shares the featured model’s 65 kPa suction and 30 cm seal format. Its built-in bag cutter is the meaningful difference in this comparison. That can reduce separate tools when staff portion material from rolls.
Choose UAH01T when its wider system is specified
UAH01T provides a 31 cm sealing width, 70 kPa suction, 135W input, and a 5 mm constant-temperature heating strip. Those are catalog differences, not a universal performance ranking. Put the target pouch, food load, and expected cycle pattern through the same acceptance test before selecting the row.
// 04 — Acceptance test
How should buyers test wet, dry, and external modes?
Test the 120W vacuum sealer with the actual pouch film, product load, and operator sequence planned for the market. Run dry, moist, seal-only, stop, and external-hose tasks separately; inspect the full 30 cm seal area; and record evacuation behavior across repeated cycles. The goal is a reproducible acceptance result.
Run a dry-pouch baseline first
Place a dry, textured vacuum pouch squarely across the bar. Run the 120W vacuum sealer in Vac mode, then inspect the finished 3 mm band from edge to edge. Record folds, channels, incomplete areas, and pouch movement. Repeat the same loading method several times so the result shows process consistency rather than one favorable cycle.
Challenge the wet mode without drawing liquid into the pump
Use the planned food and headspace while keeping the pouch mouth clean and flat. Wet mode changes the operator choice; it does not remove the need to control free liquid. Stop the cycle if liquid approaches the sealing zone. Afterward, inspect the detachable base and the seal band for residue.
Exercise the hose with the intended container system
The product record includes an external vacuum hose, but containers and valves vary. Connect the exact accessory family named in the buyer’s program, then observe valve fit, hose retention, and vacuum hold. A pouch result cannot stand in for an external-container test because the interfaces and leak paths are different.
Keep food safety separate from machine acceptance
USDA FSIS packaging guidance explains that vacuum packaging removes air, while modified-atmosphere packaging replaces gases. USDA also warns that vacuum packaging does not make perishable food shelf stable. The FDA Food Code 2022 is the model reference for retail and food-service controls around reduced-oxygen packaging.
Electrical safety scope also depends on intended use. IEC 60335-2-119 covers commercial vacuum packaging appliances and explicitly points household vacuum packaging appliances to IEC 60335-2-45. Do not treat a suction figure or a catalog mode name as evidence of compliance with either standard.
// 05 — Buyer fit
Who should shortlist this 120W vacuum sealer?
Distributors, food-service equipment sellers, and private-label programs should shortlist this 120W vacuum sealer when users need 30 cm external sealing, wet and dry controls, a compact ABS body, and hose compatibility. Programs dominated by loose liquids or bags wider than 30 cm should start with a different machine architecture instead of forcing this specification.
Distributors serving home and light-duty users
The interface offers named modes instead of one undifferentiated cycle, which can make product training clearer. The 100–240V input supports a broad voltage range. The order still needs the destination plug, labeling language, packaging artwork, and the included accessory list written as separate market requirements.
Food-service sellers with controlled workloads
External sealers can suit portioning stations that keep the pouch mouth dry and manage food temperature outside the machine. They are not chamber replacements for liquid-heavy production. A food-service buyer should define the daily load pattern, pouch construction, cleaning sequence, and reduced-oxygen food-safety plan before choosing UAH54G.
Private-label programs that need a compact platform
UAH54G supports OEM and wholesale work around logo, packaging, color, and specifications. The product measures 36.5×11×5.5 cm and has a listed gross weight of 0.78 kg. Those figures give the artwork and pack teams a real starting envelope without turning an early concept into an unsupported promise.
// 06 — Commercials
How do price tiers and cartons shape the quote?
UAH54G’s catalog price falls from $10.50 at one unit to $9.20 at 5,000 units. Those values are product tiers; OEM work, freight, Incoterms, and destination requirements belong in the quote. Use the model-specific export-carton record in the logistics callout below for freight planning.
Read every UAH54G tier literally
| Quantity | Listed discount | Catalog price per unit |
|---|---|---|
| 1 | $0.00 | $10.50 |
| 20 | $0.70 | $9.80 |
| 500 | $1.00 | $9.50 |
| 5,000 | $1.30 | $9.20 |
The listed tiers do not replace the commercial order terms. The product FAQ states a typical MOQ of 100 units, with smaller trial orders available on request. Use the tier table to frame volume, then place the accepted unit price, configuration, tooling or artwork work, currency, and Incoterm in one quote.
Use the recorded export carton, not a guessed cube
The retail package is listed at 37×13.2×6 cm. Send both retail-pack and export-carton records to the freight team because a shipping quote depends on the final pack plan, route, and Incoterm. Do not substitute the carton record of UAH01T or UAH34GX even though they appear in the comparison.
Keep payment and delivery terms on one page
Standard terms in the product record are 30% deposit and 70% balance before shipment by T/T, with Alibaba Trade Assurance supported. Bulk production is about 15–30 days after deposit, and samples are listed at 3–7 days. FOB China, EXW, and CIF are available shipping terms; the chosen port and responsibility split belong in the quotation.
// 07 — Manufacturing
How we manufacture UAH54G
The 120W vacuum sealer moves through a controlled four-stage path at Guilin Prime Household Products Co., LTD: tooling and molding, pump and PCBA burn-in, seal and vacuum quality control, then destination compliance planning and warranty support. The process protects the approved construction from component intake through packed units.
In-house tooling and private molding
Tooling, molded ABS parts, finish, and assembly interfaces are set against the selected UAH54G construction. For private-label work, the controlled item is the signed product and packaging brief, including color, logo placement, carton artwork, plug, and accessory list.
Pump and PCBA burn-in
The pump circuit and control board move through burn-in before final packing. The test scope follows the model’s actual functions: Vac, Seal, Rice, Wet, Dry, Stop, external hose operation, touchscreen input, and the listed 100–240V electrical platform.
Seal-integrity and vacuum quality control
Quality control covers the air path, sealing band, controls, and assembly. UAH54G’s reference points here are a continuous seal across the 30 cm bar and stable operation of the 65 kPa vacuum circuit. Shipment acceptance then uses the buyer’s named pouch and load.
CE and RoHS planning with 12-month warranty
CE and RoHS are the export certification names used in compliance planning; the required mark set depends on product configuration and destination. UAH54G carries a 12-month warranty. Certification names are stated here without certificate numbers, reports, awards, or customer names.
Buy the seal around the pouch and the process; pressure, flow, controls, and price only make sense after that fit is clear.
— Mi Lan, Founder, Guilin Prime Household Products Co., LTD
// 08 — Purchase order
What should the UAH54G purchase order contain?
A usable purchase order names the model, electrical and plug version, pouch range, modes, accessories, artwork, pack configuration, unit price, quantity, Incoterm, payment schedule, production window, acceptance method, and warranty route. Keep catalog facts and negotiated requirements in separate fields so a changed carton or logo cannot silently change the technical baseline.
Lock the technical baseline
Reference UAH54G and the agreed revision of the specification sheet in the purchase-order attachment instead of copying selected catalog figures. State the 100–240V market version, ABS housing, required modes, and any included vacuum bags and external hose.
Define the market version
State destination country, plug, label language, rating-label content, manual language, logo file, color reference, retail artwork, barcode owner, and required certification path. The IEC page for commercial vacuum packaging appliances distinguishes commercial use from household use, so intended use must be explicit in the compliance brief.
Close the commercial and logistics fields
Record quantity, unit price, currency, the 30/70 T/T schedule or supported Trade Assurance route, FOB/EXW/CIF term, named place, production window, pack revision, and warranty contact. Use the model-specific carton record in the logistics callout; if the pack changes, replace that baseline explicitly.
// 09 — FAQ
Frequently asked buyer questions
These answers separate machine capability from food preservation claims and commercial terms. They cover vacuum versus modified-atmosphere packaging, low-oxygen food risk, how to read kPa, what 120W can and cannot show, and the catalog MOQ, lead-time, and warranty record for UAH54G.
What is vacuum packaging and modified atmosphere packaging?
Can Clostridium botulinum be in vacuum-packaged foods?
Is higher kPa or lower kPa stronger suction for a food sealer?
Is 120W enough for a vacuum sealer?
What is the MOQ, lead time and warranty for UAH54G?
// 10 — Decision
Conclusion: decide from the pouch and process
UAH54G is a credible candidate when the real job fits its 30 cm external-sealing format, wet and dry controls, hose connection, and detachable base. Its catalog tiers and model-specific carton record support a concrete quote, while a pouch-based acceptance run protects the final decision.
The short buying sequence is clear: define the pouch and food, select the operator modes, run the actual load, choose the market version, then connect the accepted construction to price and logistics. That sequence makes the product specification useful and keeps wattage or a single suction number from carrying a decision they cannot support alone.
