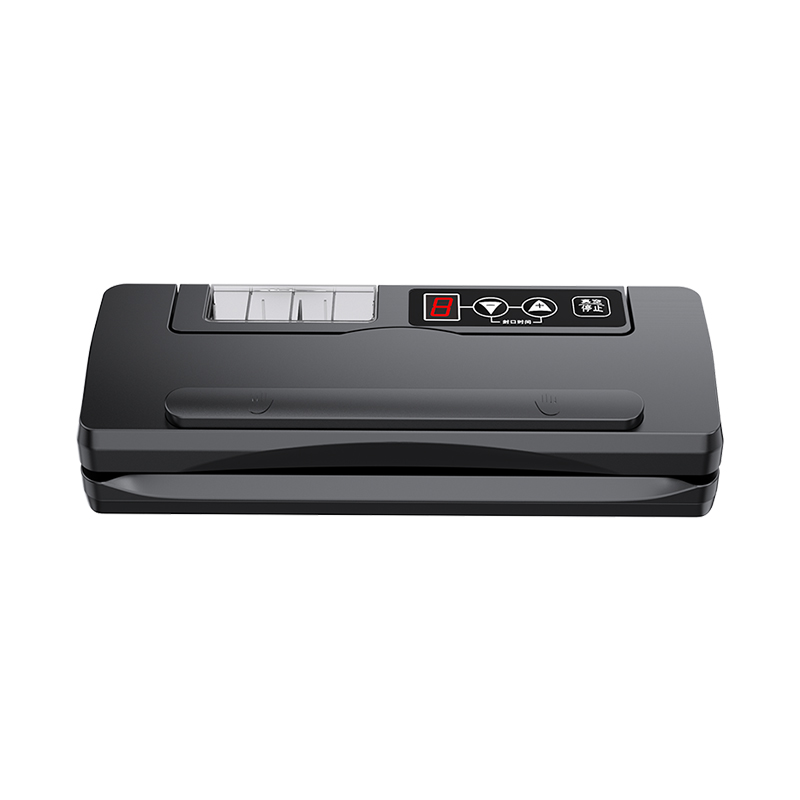

Vacuum Sealer, 180W, 28cm Seal, Extended Nozzle
The UAHFW13 is a vacuum sealer with a 180W motor, 28cm sealing width, 80kPa suction and an extended suction nozzle. Manufactured in China with a minimum order of 500 pieces — request a factory-direct quote for current tier pricing and lead time.
Features
Operation Type
Button
Controllable Vacuum Degree Mode
Modes
Automatic Vacuum Mode Selection, Start/Pause, Increase/Decrease Vacuuming Degree and Time Selection
Double Hand Press Lock
Detachable Drip Tray
Five Layered Heating Strip
Equipped with Filtered Liquid Extraction Container
24 Hours Continuous Usage with 500 Seals Per Day
Extended Suction Nozzle for smooth bags
Universal Vacuum Bag Sealings
Specifications
| Product Model | UAHFW13 |
|---|---|
| Material | ABS |
| Accessories | Vacuum Bag Roll, Flat Vacuum Bags, External Suction Tube, Cord, Filtration Cup |
| Power | 180W |
| Voltage | 100-220V (50-60Hz) |
| Motor Rated Voltage | DC 15V |
| Sealing Width | 28 cm |
| Sealing Heating Strip Width | 4 mm |
| Suction | 80kPa |
| Flow Rate | 12L/min±15% |
Packaging
| Net weight | 2.9 kg |
|---|---|
| Gross weight | 3.3 kg |
| Product size | 374x149x87 mm |
| Packaging size | 485x135x260 mm |
| Qty per carton | 4 |
| Carton gross weight | 14 kg |
| Carton size | 595x295x550 mm |
| CBM per carton | 0.09653875 |
| 20ft container qty | 1160 |
| 40ft container qty | 2400 |
| 40HQ container qty | 2816 |
| MOQ (standard) | 500 |
| MOQ (custom) | 500 |
Frequently Asked Questions
What are the key specs of this vacuum sealer?
The UAHFW13 uses a 180W motor at 100-220V, with 80kPa suction and a 12L/min flow rate. It provides a 28cm sealing width and a 4mm heating strip, with button operation and a controllable vacuum-degree mode. Controls cover automatic vacuum selection, start/pause and increase/decrease of vacuum degree and time.
How does it manage moist or liquid-rich foods?
The UAHFW13 includes a filtered liquid extraction container that traps liquid pulled from moist foods before it reaches the pump. A five-layered heating strip and 4mm seal support durable closures, and the extended suction nozzle handles smooth bags. It is rated for 24-hour continuous usage at up to 500 seals per day.
Do you offer OEM, ODM or private-label production?
Yes. We are a China-based manufacturer providing OEM, ODM and private-label services, including custom logos, colors, packaging and accessory bundles. Buyer-supplied branding and retail-ready boxes are supported. Send your specification and target market, and our team will prepare samples and a tailored production proposal.
What is the MOQ, lead time and warranty?
The standard MOQ is 500 units, with typical lead times of 15-30 days depending on order size and customization. Pricing is FOB China, with EXW and CIF options available. Payment terms are 30/70 T/T, and units carry a 12-month warranty against manufacturing defects.
